IBC

With POLY IBC, we offer you a premium product, which dispenses with the commercial standard grid construction in favour of an enclosing outer box made of HDPE. The successfully passed vibration test according to the American standard ASTMD 4728-95 as well as the field-tested penetration protection against forklift tines, confirms the globally patented 3-layer full-resin solution for the outer box. Its smooth, closed surface reliably protects the inner container against damage and, moreover, prevents liquids from leaking.



  • low weight
  • very high stability
  • all-round protection against environmental influences
  • no corrosion damage
  • highest safety due to completely enclosed plastic box
  • space saving, perfect stackability
  • easy cleaning from the outside



Consequently, the entire unit is characterised by being absolutely free of corrosion. You can be sure of that.

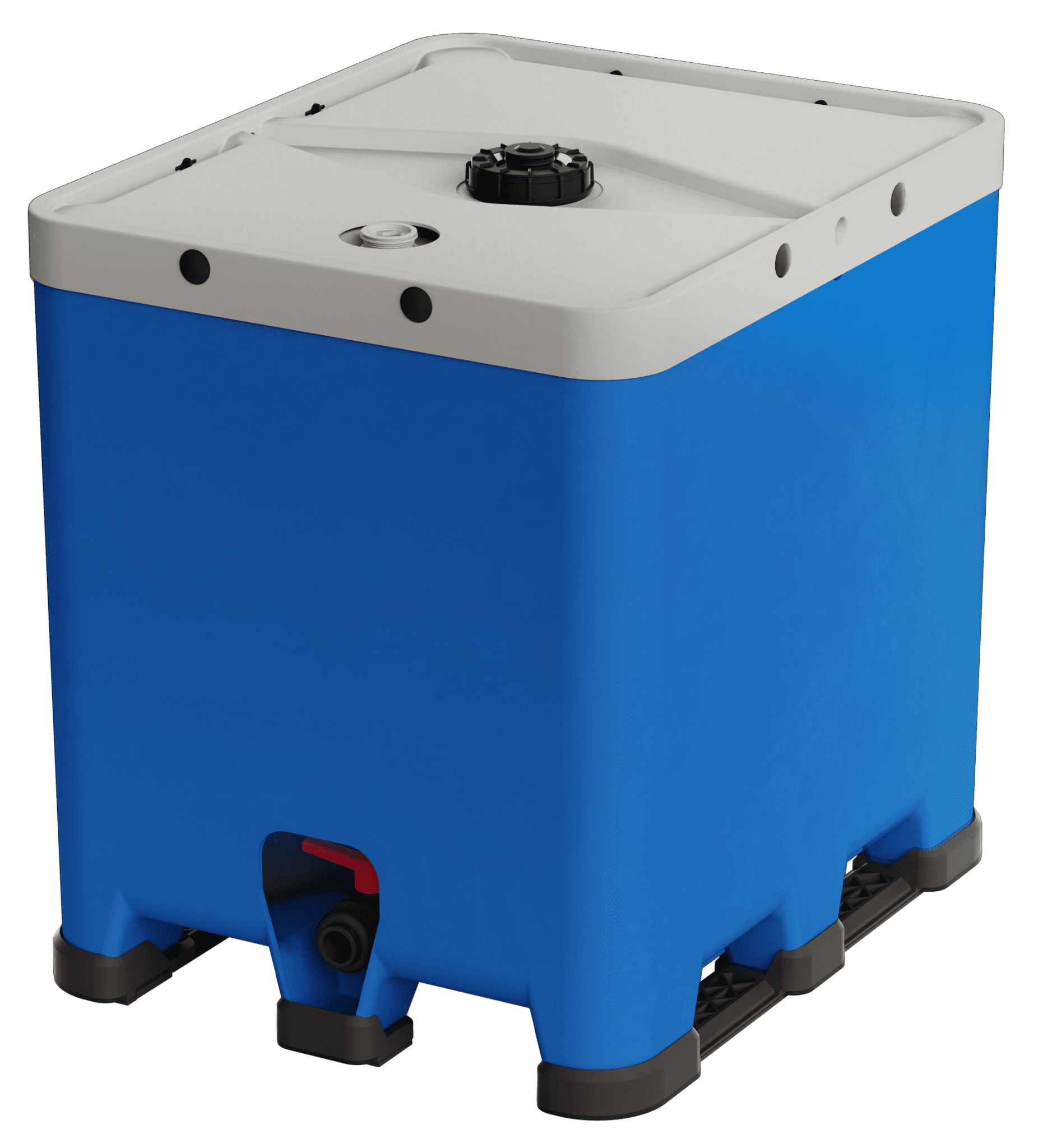

Poly IBC GR 1000 with valve

Technical specifications
Volume 1.000 ltr.
Dimensions 1.200 x 1.000 x 1.165 mm
Weight 93 kg
Fill opening Schraubdeckel DN 150
Pallets welded optional
Covering weiß

All dimensions in mm.

Poly IBC GR 1000 storage – & transportcontainer

Technical specifications
Volume 1.000 ltr.
Dimensions 1.200 x 1.000 x 1.165 mm
Weight 93 kg
Fill opening Schraubdeckel DN 150
Pallets welded optional
Covering weiß

All dimensions in mm.

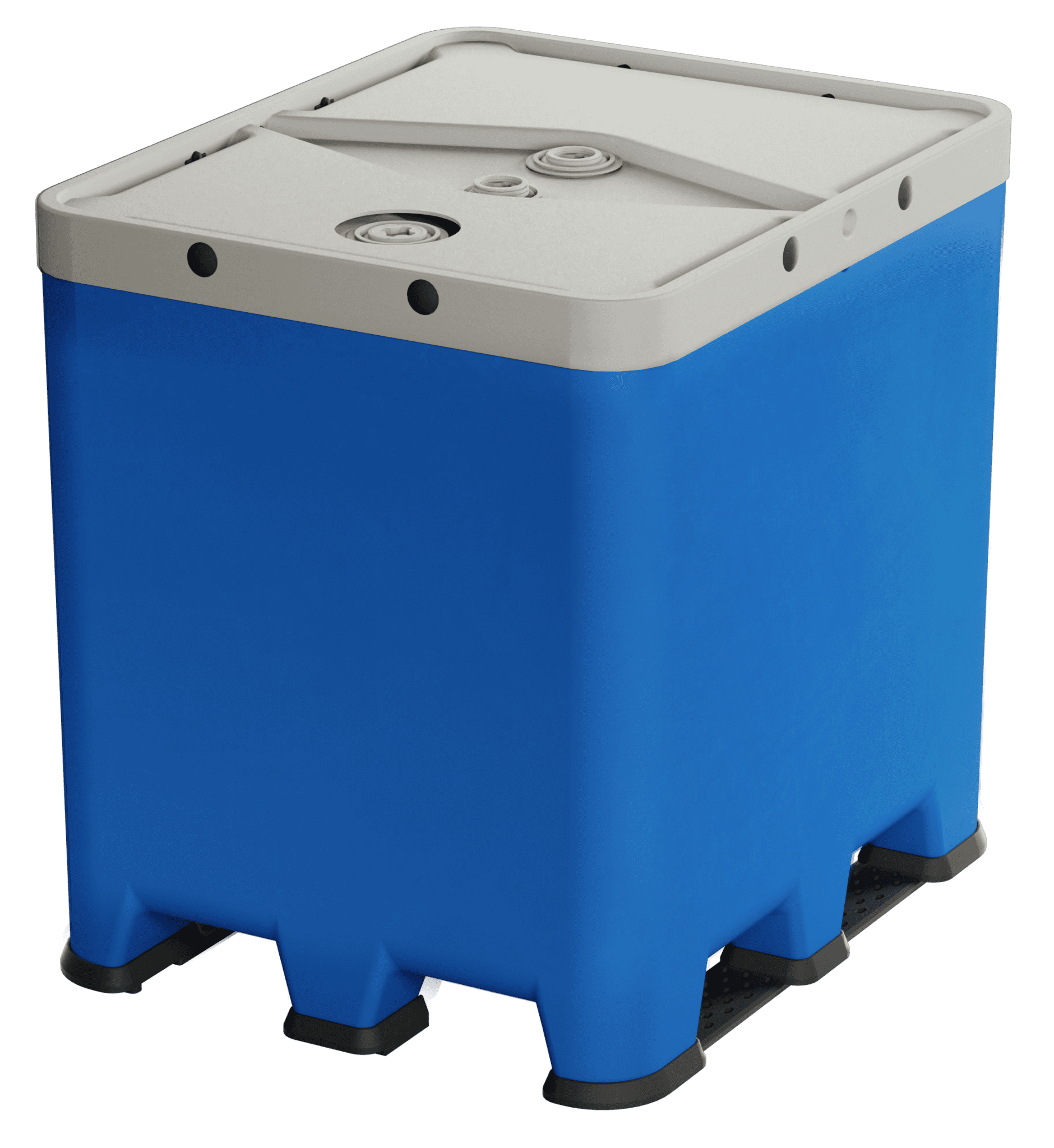

Poly IBC UC 1000

Technical specifications
Volume 1.000 ltr.
Dimensions 1.200 x 1.000 x 1.165 mm
Weight 96 kg
Fill opening 3 x S62 x 5 mm
Pallets welded optional
Covering weiß

All dimensions in mm.

Poly IBC UC-S 1000

Technical specifications
Volume 1.000 ltr.
Dimensions 1.200 x 1.000 x 1.165 mm
Weight 96 kg
Fill opening 3 x S62 x 5 mm
Pallets welded optional
Covering schwarz

All dimensions in mm.

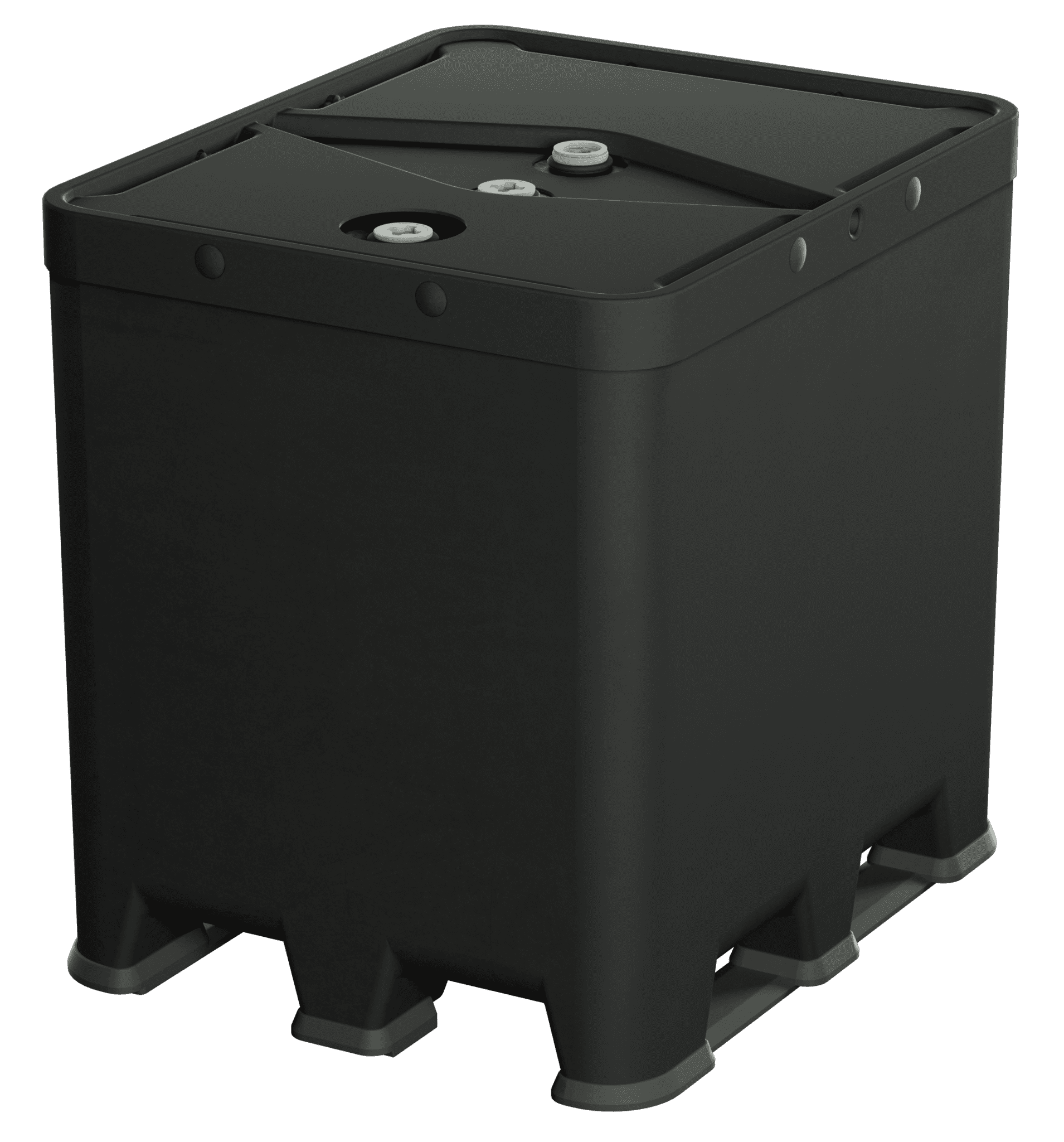

Poly IBC CD 1000

Technical specifications
Volume 1000 ltr.
Dimensions 1.200 x 1.000 x 1.165 mm
Weight 97 kg
Fill opening 3 x S62 x 5 mm
Pallets welded optional
Covering leitfähig

All dimensions in mm.

Poly IBC CD 1000 with banderole

Technical specifications
Volume 1.000 ltr.
Dimensions 1.200 x 1.000 x 1.165 mm
Weight 97 kg
Fill opening 3 x S62 x 5 mm
Pallets welded optional
Covering leitfähig

All dimensions in mm.
